[2022] VMS Pro for GIGAMEDIA Recorders

Modificato il Gio, 7 Dic, 2023 alle 9:43 AM


Software to download VMS Pro :


- VMS Pro for Windows

VMS Pro for MAC



Release note 2023 :



Before upgrading, please make sure that you know your ID/password for your equipment, upgrading will erase your data.

- Stability improvements and minor bug fixes.

- Import/Export configuration file

- Personalization of view groups (caution : you must be administrator of your workstation to save personalized views)




Quick Guide :



Start – Add a recorder & Playback

Add a recorder on VMS Pro VMS pro :

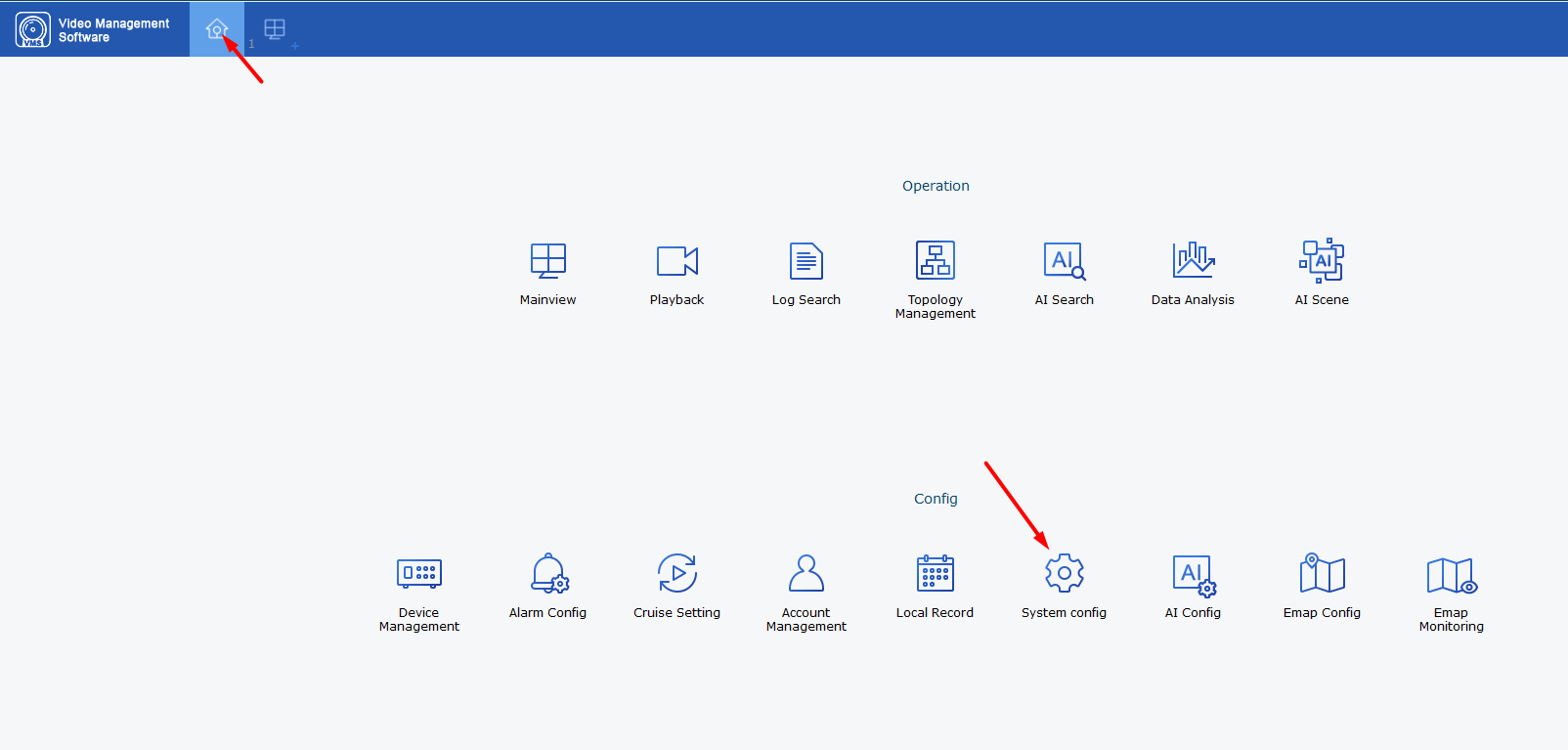

You must first go to Device Management



Then, you have 2 options to be able to add your Device :


Option 1 : Manual add


First, by clicking on the small + Symbol  (  )




This will open a tab for you :

Device Name is the name you want to display on the software.


You can choose the IP Type or P2P ID :

  • For the IP address, you must be on the same netwwork as the recorder and you can find this address via the Device Config Tools Utility on computer or directly on the recorder through [i] as infirmatio, on Ntework Settings
  • For the P2P ID, you will fond it either on the recorder below the QR Code named ID or on the GUI (Graphical User Interface) on the recorder through [i] as Information.


HTTP Port corresponds to media Port (9000)

Username and password are the one you use to unlock your device (default is admin)


Option 2 : Auto add


The second option is to go through the automatic Search Tab

You should then press the search button which will display the devices on the network.





Once the devices appear you can select them with the checkbox  all  right and then you can add them  via the "add" button


By pressing the button a small tab asking for the identifier should appear (this identifier corresponds  to the identifiers used to unlock your device)

Once add the device will be available in the main view


Then you just have to drag and drop (with the recorder or cameras) to be able to have the  images of the cameras.



 Remote Replay

To access the review you must open  the "remote playback" page in the main menu

Once opened you can select the cameras, the date (the days with  a recording have  a small orange triangle) and the type of recording, once this information is selected you will have to click on the "search" button









Once the search is done, all you have to do is click on the bar at the bottom  right to choose the time you want to watch
