Valid for the current range of GIGAMEDIA IP recorders *

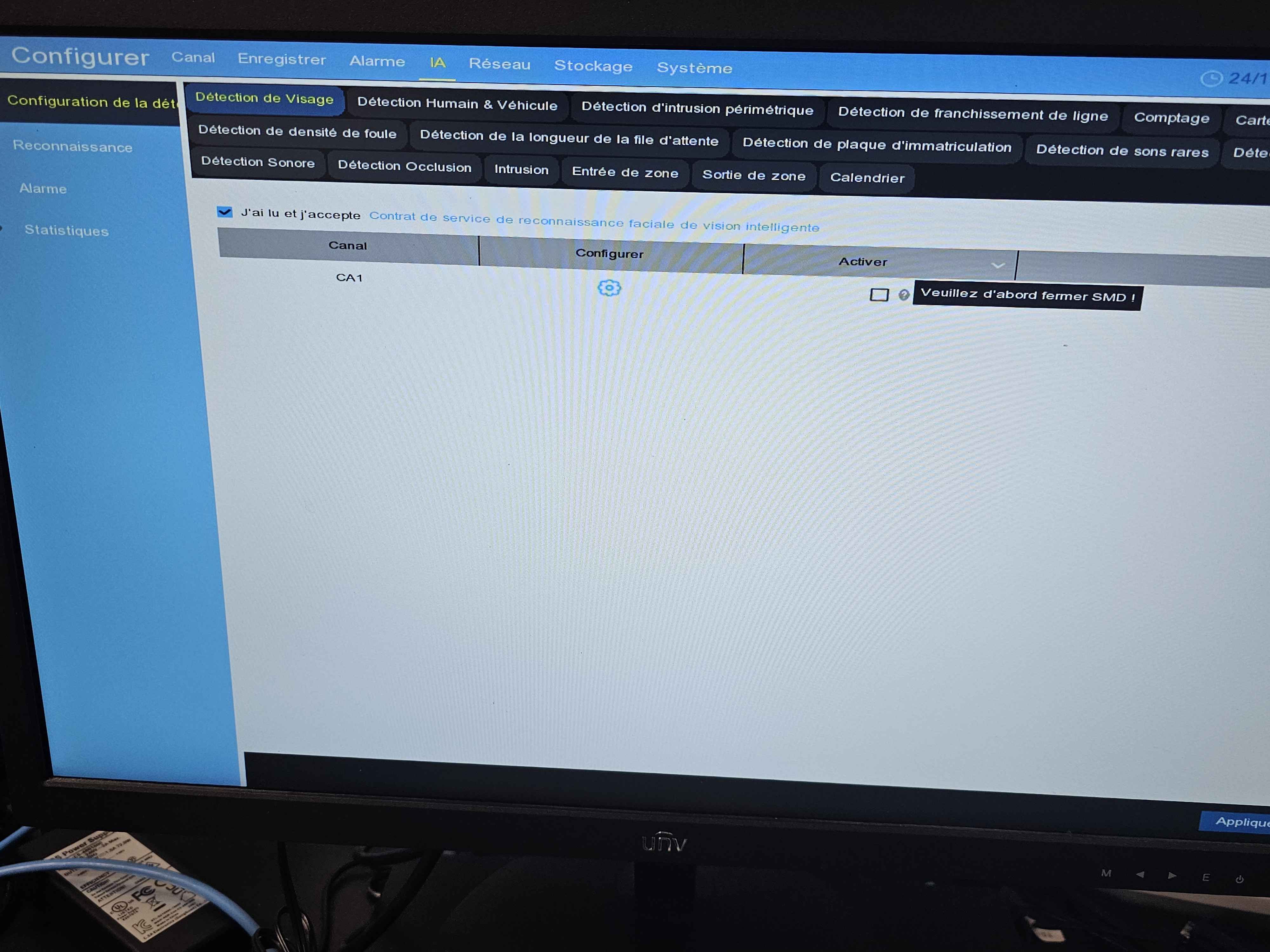

The SMD (“Smart Motion Detection”) error or the message “Please close SMD first” can appear when you try to use intelligent functions. This means that Smart Motion Detection is currently enabled. Since SMD itself is an intelligent function, you must disable it before you can activate another intelligent feature.
To disable SMD, go to:

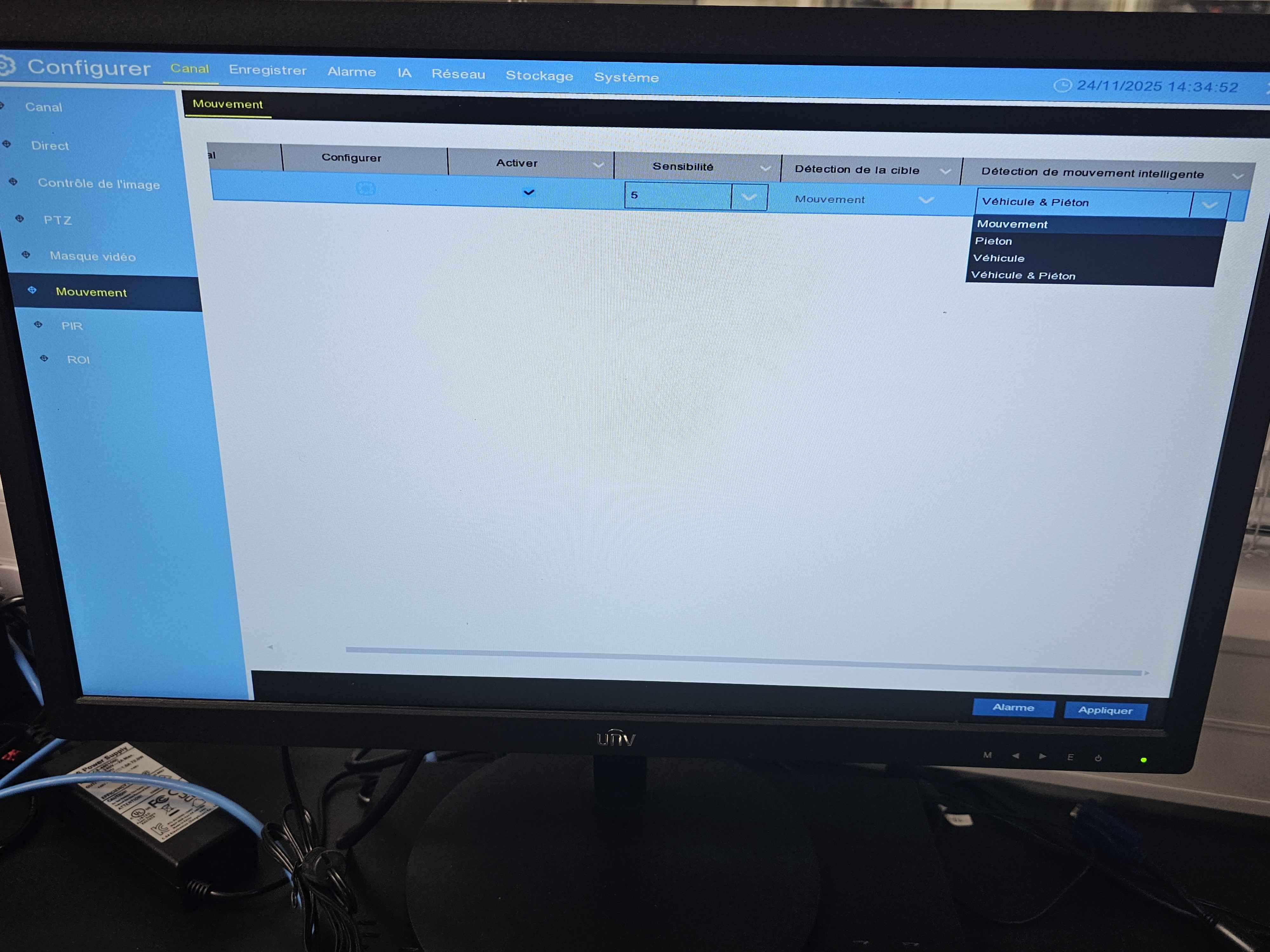

Channel → Motion
On the right side of the motion detection settings table, you will find a column called “Smart Motion Detection”.
As long as “Pedestrian”, “Vehicle”, or both are selected in this column, the intelligent function is active.
Select “Motion” instead, then click “Apply” to deactivate this intelligent function.

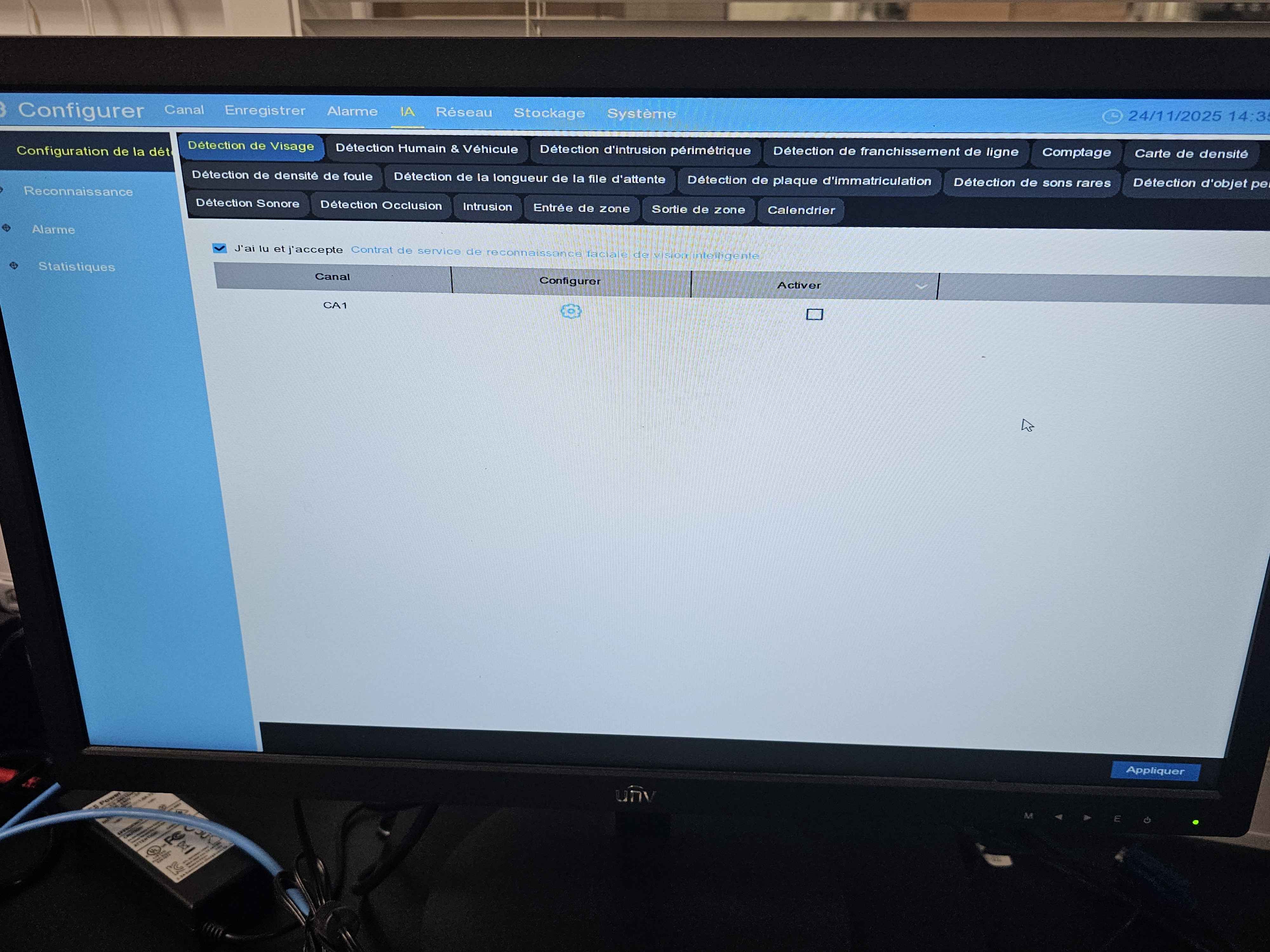

Once it is disabled, you can go back to the AI settings and enable the intelligent function you want. The error message should no longer appear.
----------------------------------------------------
* Depending on the model and firmware version used :
GGM KITIP24C5MP
GGM KITIP24CD5MP
GGM KITIP48C5MP
GGM KITIP48CD5MP
GGM KITIP48C4MPA
GGM KITIP48CD4MPA
GGM KITIP48CDM5MP
GGM KITIP816C5MP
GGM KITIP816CDM5MP
GGM NVRL0104
GGM NVRL0104P
GGM NVRL0108P
GGM NVR0108PA
GGM NVR0208P
GGM NVR020808P
GGM NVR0216P
GGM NVR021608P
GGM NVR021616P
GGM NVR0232
GGM NVR023216P
GGM NVR0416
GGM NVR0432
GGM NVR043216P
GGM NVR0816
GGM NVR081616P
GGM NVR083216P
GGM NVR0832
GGM NVR16
GGM NVR32
GGM NVRE0104P
GGM NVRE0108P
